Electric rolling and curling machine for wrought iron.Provide quotations for various iron art gates and offer professional services to enterprises related to iron art.

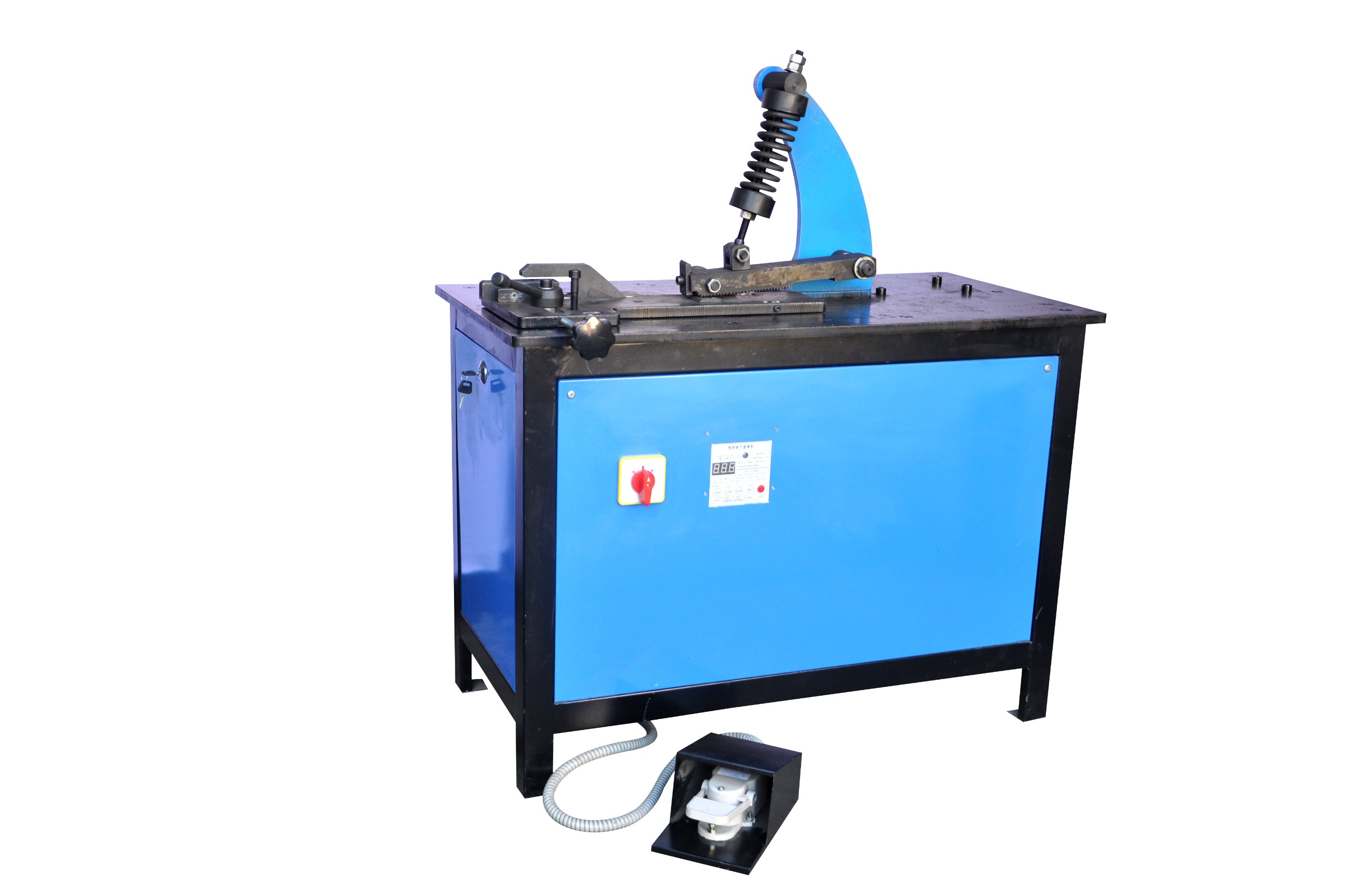

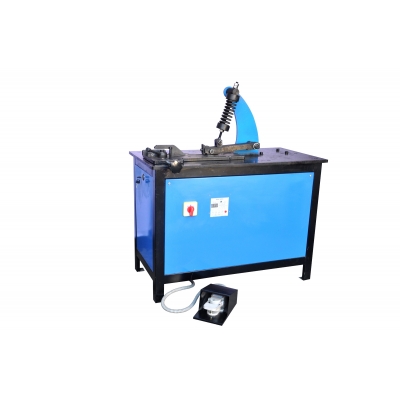

TYZY-CJ16 Electric Make Coil Machine
This machine is the type our company’s latest research and development specializing in make
rolls. Can after is heated with different specifications of flat iron, square steel, round steel(fishtail)tightly into volumes, like a flower core shape formation. Greatly improve the elegant art style of iron. Is the indispensable mechanical equipment in the production of iron. This machine is equipped with three kinds of specifications, can be rolled into a ?30 、?40、?50 diameter size of the volume flower. Basically meet the production of iron art making in different specifications of flat iron, square steel, round steel, square tube, pipe(fishtail) end coil requirements. The machine is convenient and quick to replace the mold, easy to adjust, easy to operate. High quality coil, and consistency, and high production efficiency.
TYZY-CJ16 電動搓卷機 Electric Make coil Machine
加工能力 Working Ability | 扁鐵（加熱）≤8*30mm Flat Iron(heating) |
方鋼（魚尾加熱）≤16*16mm Square Steel(tail heating) | |
圓鋼（壓扁或魚尾）≤?16mm Round Steel(flat or tail) | |
加工速度 Processing speed | 180-200pcs per hour |
電機參數(shù) Electric motor performance | 380V1.1KW6P |
Main Features
| 1.Simple operation, low failure rate, power saving 2.The mould structure is provided with a guide whee, made the feed resistance is greatly reduced, successful rolling. 3.This machine is labor saving, high production efficiency 4.High quality coil, and consistency. It can produce in batch. |
Packing Dimension | L×W×H=1000mm*600mm*1300mm |
N.W.(kg) | 200 |
G.W.(kg) | 240 |
The iron art guardrail factory is a relatively professional processing enterprise for iron art guardrails. The company was established in 1999. It specializes in producing various iron art doors and windows, iron art enclosures, iron art handrails and balustrades and other related iron art products.
